WatchGuard XTM 330
Jump to navigation
Jump to search
WatchGuard XTM 330 (NC5AE7)
Availability: EOL (07/09/2020)
Country of manuf.: Taiwan
Type: security appliance
FCC ID: none available
PCB ID: MB-XTM330 V1.0
Power: 100-240 VAC ~ 50/60 Hz, 1.2 A
Connector type: C13
CPU1: Freescale (NXP) P2020 (1 GHz, 2 cores)
FLA1: 512 MiB536,870,912 B <br />4,194,304 Kib <br />524,288 KiB <br />4,096 Mib <br />0.5 GiB <br /> (Micron MT29F4G08ABADA)
FLA2: 2 MiB2,097,152 B <br />16,384 Kib <br />2,048 KiB <br />16 Mib <br />0.00195 GiB <br /> (Spansion S29AL016J70TFI02)
RAM1: 1 GiB 1,024 MiB <br />1,073,741,824 B <br />8,388,608 Kib <br />1,048,576 KiB <br />8,192 Mib <br /> (Hynix H5TQ2G83BFR-H9C × 4)
Expansion IFs: Mini PCIe, USB 2.0
Mini PCIe slots: 1
USB ports: 2
Serial: yes, console port, RJ-45, (115200 8N1)
ETH chip1: Freescale (NXP) P2020
Switch: Marvell 88E6171
LAN speed: 1GbE
LAN ports: 6
WAN speed: 1GbE
WAN ports: 1
Additional chips
I2C Bus Serial RTC;Ricoh;RS5C372A;;1;
Hardware Monitor;Winbond;W83793G;;1;
4K I2C Serial EEPROM;Atmel;AT24C04C;;1;
USB 2.0 (Hi-Speed) PHY;SMSC;USB3300;;1;
Hex Schmitt-Trigger Inverter;TI;SN74LVC14A;;3;
Multichannel RS-232 Line Driver;TI;MA3232C;;2;
30V 11A N-Channel MOSFET;Niko-Sem;P1203BV;;6;
3A Ultra Low Dropout Regulator;Richtek;RT9018A;;2;
2 Output PCIe Gen 1 Clock Source;IDT;IDT5V41129;;1;
4-port USB Hub Controller;Genesys Logic;GL850G;;1;
Quadruple 2-Input Positive-And Gate;TI;SN74LVC08A;;4;
Dual Operational Amplifier;National Semiconductor;LM358M;;1;
5V Tolerant Low Voltage Octal Transparent Latch;Fairchild;74LCX373;;1;
+5V Powered RS-232 Transmitters/Receiver;Intersil;HIN232;;1;
48MHz 80C51 Compatible Microcontroller;Megawin Tech;89E58A;;1;
Stock bootloader: U-Boot 2011.03
Stock FW OS: Linux 3.0.34
Flags: metal case, heatsink, fan, RTC w/ battery
Default IP address: 10.0.1.1
the IP 10.0.1.1 is used by 12 additional devices
of which 10 are WatchGuard devices
Default login user: admin
Default login password: readwrite
admin:readwrite credentials used by 13 additional devices
of which 13 are WatchGuard devices
For a list of all currently documented Freescale (NXP) SoC's with specifications, see Freescale.

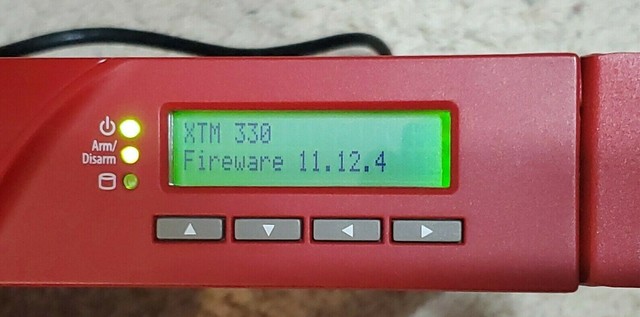

Watchguard XTM 330 Firewall Appliance
See also: Project:Network/Hardware Specific/WatchGuard and WatchGuard
Hardware specification
- CPU: Freescale (NXP) P2020 Dual Core PowerPC (@1GHz)
- Memory: 1GB (SDRAM) DDR3
- Storage: 2MB SPI Flash, 512MB Nand Flash
- Network: 7x Gigabit Ethernet ports
- USB: 2x USB 2.0 ports
- Power: 100-240V C13
Images
Board Top
Board Bottom
Display Control Board
| • Boot log |
|---|
U-Boot 2011.03 (Jan 20 2012 - 10:52:36)
CPU0: P2020E, Version: 2.1, (0x80ea0021)
Core: E500, Version: 5.1, (0x80211051)
Clock Configuration:
CPU0:1066.667 MHz, CPU1:1066.667 MHz,
CCB:533.333 MHz,
DDR:333.333 MHz (666.667 MT/s data rate) (Asynchronous), LBC:33.333 MHz
L1: D-cache 32 kB enabled
I-cache 32 kB enabled
Board: P2020RDB
XTM330 P2020 334788 Jan 20 2012
I2C: ready
DRAM: Configuring DDR for 666.667 MT/s data rate
DDR: 1 GiB (DDR3, 32-bit, CL=6, ECC off)
Flash: 2 MiB
L2: 512 KB enabled
NAND: 512 MiB
*** Warning - bad CRC, using default environment
EEPROM: NXID v0
PCIe1: Root Complex of Slot 2, no link, regs @ 0xffe0a000
PCIe1: Bus 00 - 00
PCIe2: disabled
In: serial
Out: serial
Err: serial
Net: eTSEC1: No support for PHY id ffffffff; assuming generic
eTSEC3: No support for PHY id ffffffff; assuming generic
Init SW10 switch to forwarding mode.... Done
Init SW11 switch to forwarding mode.... Done
eTSEC1, eTSEC3
WatchGuard
WatchGuard U-Boot 2011.03 - 334788 - Jan 20 2012 10:52:36
+-------------------------------------------------------------------------+
|WatchGuard (SYSA) |
|WatchGuard (SYSB) |
|WatchGuard (SAFE MODE) |
| |
| |
| |
| |
| |
| |
| |
| |
+-------------------------------------------------------------------------+
Use the ^ and v keys to select which entry is highlighted.
Press enter to boot the selected OS.
Booting SYSA
NAND read: device 0 offset 0x20000, size 0x500000
Bad block table found at page 262080, version 0x01
Bad block table found at page 262016, version 0x01
5242880 bytes read: OK
WARNING: adjusting available memory to 30000000
## Booting kernel from FIT Image at 01000000 ...
Using 'conf@1' configuration
Trying 'kernel@1' kernel subimage
Description: WatchGuard Kernel
Type: Kernel Image
Compression: gzip compressed
Data Start: 0x010000cc
Data Size: 2893187 Bytes = 2.8 MiB
Architecture: PowerPC
OS: Linux
Load Address: 0x00000000
Entry Point: 0x00000000
Hash algo: crc32
Hash value: d506f72a
Hash algo: sha1
Hash value: 41f6386acf750495b481bc591dc5f33019c2711a
Verifying Hash Integrity ... crc32+ sha1+ OK
## Flattened Device Tree from FIT Image at 01000000
Using 'conf@1' configuration
Trying 'fdt@1' FDT blob subimage
Description: Flattened Device Tree blob
Type: Flat Device Tree
Compression: uncompressed
Data Start: 0x012c2778
Data Size: 11257 Bytes = 11 KiB
Architecture: PowerPC
Hash algo: crc32
Hash value: 36e5f191
Hash algo: sha1
Hash value: f3896f45217bf769142c10f59ec2ea34798f49ff
Verifying Hash Integrity ... crc32+ sha1+ OK
Booting using the fdt blob at 0x12c2778
Uncompressing Kernel Image ... OK
Loading Device Tree to 00ffa000, end 00fffbf8 ... OK
[ 0.000000] Reserving 16MB of memory at 256MB for crashkernel (System RAM: 1024MB)
[ 0.000000] Using P2020 RDB machine description
[ 0.000000] Memory CAM mapping: 256/256/256/256 Mb, residual: 0Mb
[ 0.000000] Linux version 3.0.34 (release@cmfarm02) (gcc version 4.4.5 (WatchGuard Inc./crosstool-ng version: 0.1.5/1.9.0) ) #1 SMP Tue Dec 31 10:48:04 PST 2013
[ 0.000000] CPU maps initialized for 1 thread per core
[ 0.000000] bootconsole [udbg0] enabled
setup_arch: bootmem
mpc85xx_rdb_setup_arch()
[ 0.000000] Found FSL PCI host bridge at 0x00000000ffe0a000. Firmware bus number: 0->0
[ 0.000000] PCI host bridge /pcie@ffe0a000 ranges:
[ 0.000000] MEM 0x0000000080000000..0x000000009fffffff -> 0x0000000080000000
[ 0.000000] IO 0x00000000ffc00000..0x00000000ffc0ffff -> 0x0000000000000000
[ 0.000000] /pcie@ffe0a000: PCICSRBAR @ 0xfff00000
[ 0.000000] MPC85xx RDB board from Freescale Semiconductor
arch: exit
[ 0.000000] Zone PFN ranges:
[ 0.000000] DMA 0x00000000 -> 0x00040000
[ 0.000000] Normal empty
[ 0.000000] Movable zone start PFN for each node
[ 0.000000] early_node_map[1] active PFN ranges
[ 0.000000] 0: 0x00000000 -> 0x00040000
[ 0.000000] MMU: Allocated 1088 bytes of context maps for 255 contexts
[ 0.000000] PERCPU: Embedded 7 pages/cpu @a0f03000 s5728 r8192 d14752 u32768
[ 0.000000] Built 1 zonelists in Zone order, mobility grouping on. Total pages: 260096
[ 0.000000] Kernel command line: root=/dev/mtdblock9 rw rootfstype=jffs2 console=ttyS0,115200 ramdisk_size=600000
[ 0.000000] PID hash table entries: 4096 (order: 2, 16384 bytes)
[ 0.000000] Dentry cache hash table entries: 131072 (order: 7, 524288 bytes)
[ 0.000000] Inode-cache hash table entries: 65536 (order: 6, 262144 bytes)
[ 0.000000] Memory: 1015852k/1048576k available (5668k kernel code, 32724k reserved, 256k data, 1221k bss, 224k init)
[ 0.000000] Kernel virtual memory layout:
[ 0.000000] * 0xfffdf000..0xfffff000 : fixmap
[ 0.000000] * 0xfdfec000..0xfe000000 : early ioremap
[ 0.000000] * 0xe1000000..0xfdfec000 : vmalloc & ioremap
[ 0.000000] SLUB: Genslabs=15, HWalign=32, Order=0-3, MinObjects=0, CPUs=2, Nodes=1
[ 0.000000] Hierarchical RCU implementation.
[ 0.000000] NR_IRQS:512
[ 0.000000] mpic: Setting up MPIC " OpenPIC " version 1.2 at ffe40000, max 2 CPUs
[ 0.000000] mpic: ISU size: 256, shift: 8, mask: ff
[ 0.000000] mpic: Initializing for 256 sources
[ 0.000000] clocksource: timebase mult[3c00001] shift[22] registered
[ 0.000000] Console: colour dummy device 80x25
[ 0.010719] pid_max: default: 32768 minimum: 301
[ 0.015460] Mount-cache hash table entries: 512
[ 0.021315] mpic: requesting IPIs...
[ 0.082259] Brought up 2 CPUs
[ 0.085704] NET: Registered protocol family 16
[ 0.092124] PCI: Probing PCI hardware
[ 0.095764] pci 0000:00:00.0: ignoring class b20 (doesn't match header type 01)
[ 0.103052] pci 0000:00:00.0: PCI bridge to [bus 01-ff]
[ 0.108330] pci 0000:00:00.0: PCI bridge to [bus 01-01]
[ 0.113463] pci 0000:00:00.0: bridge window [io 0xfdfed000-0xfdffcfff]
[ 0.120221] pci 0000:00:00.0: bridge window [mem 0x80000000-0x9fffffff]
[ 0.126982] pci 0000:00:00.0: bridge window [mem pref disabled]
[ 0.133055] pci 0000:00:00.0: enabling device (0106 -> 0107)
[ 0.140168] bio: create slab <bio-0> at 0
[ 0.144236] Freescale Elo / Elo Plus DMA driver
[ 0.148929] SCSI subsystem initialized
[ 0.152699] usbcore: registered new interface driver usbfs
[ 0.158134] usbcore: registered new interface driver hub
[ 0.163441] usbcore: registered new device driver usb
[ 0.168693] Switching to clocksource timebase
[ 0.173091] FS-Cache: Loaded
[ 0.174256] Switched to NOHz mode on CPU #1
[ 0.180045] Switched to NOHz mode on CPU #0
[ 0.184256] CacheFiles: Loaded
[ 0.189547] NET: Registered protocol family 2
[ 0.193915] IP route cache hash table entries: 32768 (order: 5, 131072 bytes)
[ 0.201401] TCP established hash table entries: 131072 (order: 8, 1048576 bytes)
[ 0.211117] TCP bind hash table entries: 65536 (order: 7, 524288 bytes)
[ 0.218825] TCP: Hash tables configured (established 131072 bind 65536)
[ 0.225355] TCP reno registered
[ 0.228465] UDP hash table entries: 512 (order: 2, 16384 bytes)
[ 0.234396] UDP-Lite hash table entries: 512 (order: 2, 16384 bytes)
[ 0.241030] NET: Registered protocol family 1
[ 0.246470] fsl-elo-dma ffe0c300.dma: #0 (fsl,eloplus-dma-channel), irq 76
[ 0.253303] fsl-elo-dma ffe0c300.dma: #1 (fsl,eloplus-dma-channel), irq 77
[ 0.260138] fsl-elo-dma ffe0c300.dma: #2 (fsl,eloplus-dma-channel), irq 78
[ 0.266992] fsl-elo-dma ffe0c300.dma: #3 (fsl,eloplus-dma-channel), irq 79
[ 0.274275] fsl-elo-dma ffe21300.dma: #0 (fsl,eloplus-dma-channel), irq 20
[ 0.281097] fsl-elo-dma ffe21300.dma: #1 (fsl,eloplus-dma-channel), irq 21
[ 0.287942] fsl-elo-dma ffe21300.dma: #2 (fsl,eloplus-dma-channel), irq 22
[ 0.294796] fsl-elo-dma ffe21300.dma: #3 (fsl,eloplus-dma-channel), irq 23
[ 0.355038] WG CPU Model 2020
[ 0.358010] WG CRASH MIN RESERVE 0 MB
[ 0.376772] JFFS2 version 2.2. (NAND) (SUMMARY) © 2001-2006 Red Hat, Inc.
[ 0.383941] msgmni has been set to 1986
[ 0.387929] alg: No test for cipher_null (cipher_null-generic)
[ 0.393742] alg: No test for ecb(cipher_null) (ecb-cipher_null)
[ 0.399636] alg: No test for digest_null (digest_null-generic)
[ 0.405442] alg: No test for compress_null (compress_null-generic)
[ 0.412813] alg: No test for stdrng (krng)
[ 0.416946] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 253)
[ 0.424251] io scheduler noop registered
[ 0.428143] io scheduler deadline registered
[ 0.432426] io scheduler cfq registered (default)
[ 0.487778] Serial: 8250/16550 driver, 2 ports, IRQ sharing enabled
[ 0.494606] serial8250.0: ttyS0 at MMIO 0xffe04500 (irq = 42) is a 16550A
[ 0.501317] console [ttyS0] enabled, bootconsole disabled
[ 0.501317] console [ttyS0] enabled, bootconsole disabled
[ 0.512467] serial8250.0: ttyS1 at MMIO 0xffe04600 (irq = 42) is a 16550A
[ 0.519461] Generic non-volatile memory driver v1.1
[ 0.526498] brd: module loaded
[ 0.530622] loop: module loaded
[ 0.534382] efe00000.nor: Found 1 x16 devices at 0x0 in 16-bit bank. Manufacturer ID 0x000001 Chip ID 0x002249
[ 0.544386] Amd/Fujitsu Extended Query Table at 0x0040
[ 0.549546] Amd/Fujitsu Extended Query version 1.3.
[ 0.554593] number of CFI chips: 1
[ 0.558366] Creating 7 MTD partitions on "efe00000.nor":
[ 0.563676] 0x000000000000-0x000000020000 : "NOR (RW) WG CFG0"
[ 0.569999] 0x000000020000-0x000000030000 : "NOR (RW) WG CFG1"
[ 0.576222] 0x000000030000-0x000000040000 : "NOR (RW) WG MFG DATA"
[ 0.582811] 0x000000040000-0x0000000f0000 : "NOR (RW) WG bootOpt Data & reserved"
[ 0.590699] 0x0000000f0000-0x000000100000 : "NOR (RW) WG U-Boot ENV"
[ 0.597460] 0x000000100000-0x000000180000 : "NOR (RW) WG U-Boot Image"
[ 0.604387] 0x000000180000-0x000000200000 : "NOR (RW) WG U-Boot FAILSAFE"
[ 0.611785] NAND device: Manufacturer ID: 0x2c, Chip ID: 0xdc (Micron NAND 512MiB 3,3V 8-bit)
[ 0.622293] Creating 7 MTD partitions on "ffa00000.flash":
[ 0.627776] 0x000000000000-0x000000020000 : "NAND (RW) WG DTB Image"
[ 0.634660] 0x000000020000-0x000000520000 : "NAND (RW) WG SYSA Kernel"
[ 0.641596] 0x000000520000-0x000007f00000 : "NAND (RW) WG SYSA_CODE"
[ 0.648401] 0x000007f00000-0x00001df00000 : "NAND (RW) WG SYSA_DATA"
[ 0.655290] 0x00001df00000-0x00001e400000 : "NAND (RW) WG SYSB Kernel"
[ 0.662225] 0x00001e400000-0x00001fc00000 : "NAND (RW) WG SYSB_CODE"
[ 0.669011] 0x00001fc00000-0x000020000000 : "NAND (RW) WG KDUMP"
[ 0.675421] eLBC NAND device at 0xffa00000, bank 1
[ 0.680867] Fixed MDIO Bus: probed
[ 0.684617] eth0: Gianfar Ethernet Controller Version 1.2, 10:56:ca:06:d1:50
[ 0.691663] eth0: Running with NAPI enabled
[ 0.695839] eth0: RX BD ring size for Q[0]: 256
[ 0.700364] eth0: TX BD ring size for Q[0]: 256
[ 0.705179] eth1: Gianfar Ethernet Controller Version 1.2, 10:56:ca:06:d1:51
[ 0.712222] eth1: Running with NAPI enabled
[ 0.716396] eth1: RX BD ring size for Q[0]: 256
[ 0.720918] eth1: TX BD ring size for Q[0]: 256
[ 0.725737] Freescale PowerQUICC MII Bus: probed
[ 0.730514] mdio_bus mdio@ffe24520: error probing PHY at address 17
[ 0.736897] mdio_bus mdio@ffe24520: error probing PHY at address 16
[ 0.743216] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
[ 0.749876] /soc@ffe00000/usb@22000: Invalid 'dr_mode' property, fallback to host mode
[ 0.757843] fsl-ehci fsl-ehci.0: Freescale On-Chip EHCI Host Controller
[ 0.764500] fsl-ehci fsl-ehci.0: new USB bus registered, assigned bus number 1
[ 0.793017] fsl-ehci fsl-ehci.0: irq 28, io mem 0xffe22000
[ 0.808990] fsl-ehci fsl-ehci.0: USB 2.0 started, EHCI 1.00
[ 0.814875] hub 1-0:1.0: USB hub found
[ 0.818632] hub 1-0:1.0: 1 port detected
[ 0.822757] usbcore: registered new interface driver usbserial
[ 0.828613] USB Serial support registered for generic
[ 0.833691] usbcore: registered new interface driver usbserial_generic
[ 0.840211] usbserial: USB Serial Driver core
[ 0.844581] USB Serial support registered for pl2303
[ 0.849583] usbcore: registered new interface driver pl2303
[ 0.855149] pl2303: Prolific PL2303 USB to serial adaptor driver
[ 0.861188] i2c /dev entries driver
[ 0.864792] mpc-i2c ffe03000.i2c: timeout 1000000 us
[ 0.874017] rtc-rs5c372 0-0032: rs5c372a found, 24hr, driver version 0.6
[ 0.886725] rtc-rs5c372 0-0032: rtc core: registered rtc-rs5c372 as rtc0
[ 0.893638] mpc-i2c ffe03100.i2c: timeout 1000000 us
[ 0.898822] booke_wdt: powerpc book-e watchdog driver loaded
[ 0.904567] EDAC MC: Ver: 2.1.0
[ 0.907790] Freescale(R) MPC85xx EDAC driver, (C) 2006 Montavista Software
[ 0.914796] mpc85xx_mc_err_probe: No ECC DIMMs discovered
[ 0.920606] EDAC DEVICE0: Giving out device to module 'MPC85xx_edac' controller 'mpc85xx_l2_err': DEV 'mpc85xx_l2_err' (INTERRUPT)
[ 0.932422] MPC85xx_edac acquired irq 16 for L2 Err
[ 0.937295] MPC85xx_edac L2 err registered
[ 0.941770] TCP cubic registered
[ 0.944996] Initializing XFRM netlink socket
[ 0.949689] NET: Registered protocol family 10
[ 0.954602] ip6_tables: (C) 2000-2006 Netfilter Core Team
[ 0.960000] NET: Registered protocol family 17
[ 0.964451] NET: Registered protocol family 15
[ 0.971412] rtc-rs5c372 0-0032: setting system clock to 2021-01-11 14:33:35 UTC (1610375615)
[ 1.140998] usb 1-1: new high speed USB device number 2 using fsl-ehci
[ 1.279184] hub 1-1:1.0: USB hub found
[ 1.283246] hub 1-1:1.0: 2 ports detected
[ 2.057775] VFS: Mounted root (jffs2 filesystem) on device 31:9.
[ 2.063815] Freeing unused kernel memory: 224k init
[ 4.080131] Running /etc/runlevel/1/S02rootrw...Done.
[ 4.082632] Running /etc/runlevel/1/S05mproc...Done.
[ 4.083946] Running /etc/runlevel/1/S05sysfs...Done.
[ 4.085094] Running /etc/runlevel/1/S10armled...Done.
[ 4.151797] Running /etc/runlevel/1/S18seed-random...Reseeded random generator
[ 4.165510] Done.
[ 4.191922] Running /etc/runlevel/2/S10var...Done.
[ 4.194010] Running /etc/runlevel/2/S11shm...Done.
[ 4.196699] Running /etc/runlevel/2/S13devpts...Done.
[ 4.197839] Running /etc/runlevel/2/S14temp...Done.
[ 4.199079] Running /etc/runlevel/2/S16pending...Done.
[ 4.199628] Running /etc/runlevel/2/S18data...Done.
[ 7.038438] Running /etc/runlevel/2/S18hotplug...Done.
[ 8.597857] Running /etc/runlevel/2/S18kdump...Done.
[ 10.622274] Running /etc/runlevel/2/S19ipv6...disabling IPv6 autoconf for all
[ 10.624533] disabling IPv6 autoconf for default
[ 10.624707] enable IPv6 forwarding for all
[ 10.624861] enable IPv6 forwarding for default
[ 10.625021] disabling IPv6 for all
[ 10.625146] disabling IPv6 for default
[ 10.625277] Done.
[ 10.625336] Running /etc/runlevel/2/S20cleanup-dbg...Done.
[ 10.625535] Running /etc/runlevel/2/S20sigs...Done.
[ 11.474248] Running /etc/runlevel/2/S20usb...[ 11.599857] Initializing USB Mass Storage driver...
[ 11.605041] usbcore: registered new interface driver usb-storage
[ 11.611054] USB Mass Storage support registered.
Done.
[ 11.602448] Running /etc/runlevel/2/S20wgbase...[ 11.625221] wgipc: module license 'Watchguard Proprietary' taints kernel.
[ 11.632011] Disabling lock debugging due to kernel taint
Done.
[ 11.629992] Running /etc/runlevel/2/S21eth...[ 11.653089]
[ 11.653092] wg_dsa_init: Built Dec 31 2013 10:48:40 P2020 SW 2 Flags 2929
[ 11.653095]
[ 11.662872] wg_dsa_init: Rename eth0 -> eth4
[ 11.677124] wg_dsa_init: Rename eth1 -> eth0
[ 11.697101] wg_dsa_init: Rename eth0 -> sw10
[ 11.721446] Distributed Switch Architecture driver version 0.1
[ 11.728456] sw10[0]: detected a Marvell 88E6171 switch
[ 12.026744] dsa slave smi: probed
[ 12.030103] dsa_slave_create: eth0 Marvell headers enabled, len 16
[ 12.061067] dsa_slave_create: eth1 Marvell headers enabled, len 16
[ 12.091012] dsa_slave_create: eth2 Marvell headers enabled, len 16
[ 12.121793] dsa_slave_create: eth3 Marvell headers enabled, len 16
[ 12.152645] wg_dsa_init: Split sw10
[ 12.156136] wg_dsa_init: Rename eth4 -> sw11
[ 12.170573] sw11[0]: detected a Marvell 88E6171 switch
[ 12.463968] dsa slave smi: probed
[ 12.467324] dsa_slave_create: eth4 Marvell headers enabled, len 16
[ 12.497914] dsa_slave_create: eth5 Marvell headers enabled, len 16
[ 12.527490] dsa_slave_create: eth6 Marvell headers enabled, len 16
[ 12.558122] wg_dsa_init: Split sw11
[ 14.563881] gfar_init_mac: sw10: L2OFF 2 Pad 8 RCTRL 20807ca
[ 14.570620] ADDRCONF(NETDEV_UP): sw10: link is not ready
[ 14.576325] gfar_init_mac: sw11: L2OFF 2 Pad 8 RCTRL 20807ca
[ 14.583032] ADDRCONF(NETDEV_UP): sw11: link is not ready
Done.
[ 14.575295] Running /etc/runlevel/2/S22hwmon...[ 14.621768] hwmon_vid: Unknown VRM version of your CPU
[ 14.630656] w83793 0-002d: Registered watchdog chardev major 10, minor: 212
Done.
[ 14.624658] Running /etc/runlevel/2/S22login...Done.
[ 14.625930] Running /etc/runlevel/2/S22rtc...Done.
[ 14.633048] Running /etc/runlevel/2/S23pppoe...[ 14.669584] PPP generic driver version 2.4.2
[ 14.693315] PPP MPPE Compression module registered
[ 14.702000] PPP Deflate Compression module registered
[ 14.710165] NET: Registered protocol family 24
Done.
[ 14.710242] Running /etc/runlevel/2/S23sslvpn...[ 14.734452] tun: Universal TUN/TAP device driver, 1.6
[ 14.739526] tun: (C) 1999-2004 Max Krasnyansky <maxk@qualcomm.com>
Done.
[ 14.734304] Running /etc/runlevel/2/S24l2tpvpn...[ 14.760283] L2TP core driver, V2.0
[ 14.769749] L2TP netlink interface
[ 14.783757] PPPoL2TP kernel driver, V2.0
Done.
[ 14.774422] Running /etc/runlevel/2/S25wgcfg...[ 16.561006] PHY: 0:02 - Link is Up - 1000/Full
[ 16.566419] ADDRCONF(NETDEV_CHANGE): sw10: link becomes ready
[ 16.572992] PHY: 0:01 - Link is Up - 1000/Full
[ 16.577987] ADDRCONF(NETDEV_CHANGE): sw11: link becomes ready
Info: No conversion required from version 11.8.1 to 11.8.1.
[ 17.201515] Done.
[ 17.201600] Running /etc/runlevel/2/S27cfgcheck...Config ok
[ 18.373066] Done.
[ 18.373169] Running /etc/runlevel/2/S29firewall...Done.
[ 18.375131] Running /etc/runlevel/2/S29wgcore...Done.
[ 18.497885] Running /etc/runlevel/2/S30bonding...[ 18.562336] bonding: Ethernet Channel Bonding Driver: v3.7.1 (April 27, 2011)
[ 18.569490] bonding: MII link monitoring set to 100 ms
Done.
[ 18.561513] Running /etc/runlevel/2/S30net...[ 18.621713] Bridge firewalling registered
[ 18.637545] Ebtables v2.0 registered
[ 18.673109] GRE over IPv4 demultiplexor driver
[ 18.692499] GRE over IPv4 tunneling driver
[ 18.699714] bvpn vif handlers are registered
[ 18.721523] 802.1Q VLAN Support v1.8
Done.
[ 18.718282] Running /etc/runlevel/2/S30upgrade...Done.
[ 18.722685] Running /etc/runlevel/2/S31cacert...Done.
[ 18.830825] Running /etc/runlevel/2/S31cert...[ 22.280008] JFFS2 notice: (77) check_node_data: wrong data CRC in data node at 0x0496736c: read 0xa6f6c955, calculated 0xbd0b7942.
Done.
[ 24.679242] Running /etc/runlevel/2/S31crypto...[ 24.710295] talitos ffe30000.crypto: hwrng
[ 24.714533] alg: No test for authenc(hmac(sha1),cbc(aes)) (authenc-hmac-sha1-cbc-aes-talitos)
[ 24.723091] talitos ffe30000.crypto: authenc-hmac-sha1-cbc-aes-talitos
[ 24.729674] alg: No test for authenc(hmac(sha1),cbc(des3_ede)) (authenc-hmac-sha1-cbc-3des-talitos)
[ 24.738759] talitos ffe30000.crypto: authenc-hmac-sha1-cbc-3des-talitos
[ 24.745444] alg: No test for authenc(hmac(sha256),cbc(aes)) (authenc-hmac-sha256-cbc-aes-talitos)
[ 24.754330] talitos ffe30000.crypto: authenc-hmac-sha256-cbc-aes-talitos
[ 24.761107] alg: No test for authenc(hmac(sha256),cbc(des3_ede)) (authenc-hmac-sha256-cbc-3des-talitos)
[ 24.770532] talitos ffe30000.crypto: authenc-hmac-sha256-cbc-3des-talitos
[ 24.777440] alg: No test for authenc(hmac(md5),cbc(aes)) (authenc-hmac-md5-cbc-aes-talitos)
[ 24.785816] talitos ffe30000.crypto: authenc-hmac-md5-cbc-aes-talitos
[ 24.792357] alg: No test for authenc(hmac(md5),cbc(des3_ede)) (authenc-hmac-md5-cbc-3des-talitos)
[ 24.801259] talitos ffe30000.crypto: authenc-hmac-md5-cbc-3des-talitos
[ 24.807913] talitos ffe30000.crypto: cbc-aes-talitos
[ 24.813044] talitos ffe30000.crypto: cbc-3des-talitos
[ 24.818425] talitos ffe30000.crypto: md5-talitos
[ 24.823223] talitos ffe30000.crypto: sha1-talitos
[ 24.828078] talitos ffe30000.crypto: sha224-talitos
[ 24.833139] talitos ffe30000.crypto: sha256-talitos
[ 24.838205] talitos ffe30000.crypto: sha384-talitos
[ 24.843268] talitos ffe30000.crypto: sha512-talitos
[ 24.848228] alg: No test for authenc(hmac(sha1),cbc(cipher_null)) (authenc-hmac-sha1-cbc-cipher-null-talitos)
[ 24.858183] talitos ffe30000.crypto: authenc-hmac-sha1-cbc-cipher-null-talitos
[ 24.865467] alg: No test for authenc(hmac(sha256),cbc(cipher_null)) (authenc-hmac-sha256-cbc-cipher-null-talitos)
[ 24.875772] talitos ffe30000.crypto: authenc-hmac-sha256-cbc-cipher-null-talitos
[ 24.883211] alg: No test for authenc(hmac(sha384),cbc(cipher_null)) (authenc-hmac-sha384-cbc-cipher-null-talitos)
[ 24.893475] talitos ffe30000.crypto: authenc-hmac-sha384-cbc-cipher-null-talitos
[ 24.900908] alg: No test for authenc(hmac(sha512),cbc(cipher_null)) (authenc-hmac-sha512-cbc-cipher-null-talitos)
[ 24.911172] talitos ffe30000.crypto: authenc-hmac-sha512-cbc-cipher-null-talitos
[ 24.918618] alg: No test for authenc(hmac(sha384),cbc(aes)) (authenc-hmac-sha384-cbc-aes-talitos)
[ 24.927502] talitos ffe30000.crypto: authenc-hmac-sha384-cbc-aes-talitos
[ 24.934246] alg: No test for authenc(hmac(sha384),cbc(des3_ede)) (authenc-hmac-sha384-cbc-3des-talitos)
[ 24.943642] talitos ffe30000.crypto: authenc-hmac-sha384-cbc-3des-talitos
[ 24.950469] alg: No test for authenc(hmac(sha512),cbc(aes)) (authenc-hmac-sha512-cbc-aes-talitos)
[ 24.959346] talitos ffe30000.crypto: authenc-hmac-sha512-cbc-aes-talitos
[ 24.966093] alg: No test for authenc(hmac(sha512),cbc(des3_ede)) (authenc-hmac-sha512-cbc-3des-talitos)
[ 24.975495] talitos ffe30000.crypto: authenc-hmac-sha512-cbc-3des-talitos
[ 24.982326] alg: No test for authenc(digest_null,cbc(aes)) (authenc-digest-null-cbc-aes-talitos)
[ 24.991131] talitos ffe30000.crypto: authenc-digest-null-cbc-aes-talitos
[ 24.997917] alg: No test for authenc(digest_null,cbc(des3_ede)) (authenc-digest-null-cbc-3des-talitos)
[ 25.007233] talitos ffe30000.crypto: authenc-digest-null-cbc-3des-talitos
[ 25.014078] talitos ffe30000.crypto: ablk-cbc-aes-talitos
[ 25.019530] talitos ffe30000.crypto: ablk-cbc-3des-talitos
[ 25.025061] alg: No test for auth(sha1) (auth-sha1-talitos)
[ 25.030643] talitos ffe30000.crypto: auth-sha1-talitos
[ 25.035831] alg: No test for auth(sha256) (auth-sha256-talitos)
[ 25.041761] talitos ffe30000.crypto: auth-sha256-talitos
[ 25.047119] alg: No test for auth(sha384) (auth-sha384-talitos)
[ 25.053049] talitos ffe30000.crypto: auth-sha384-talitos
[ 25.058423] alg: No test for auth(sha512) (auth-sha512-talitos)
[ 25.064351] talitos ffe30000.crypto: auth-sha512-talitos
Done.
[ 25.071713] Running /etc/runlevel/2/S31xtables...[ 25.093477] Netfilter messages via NETLINK v0.30.
[ 25.109994] ip_set_init[1869]: ip_set: protocol 5
[ 25.278928] nf_conntrack version 0.5.0 (15892 buckets, 63568 max)
[ 25.285062] nf_conntrack_init_init_net: conntrack max=63568 high water mark=50854
[ 25.318552] ip_tables: (C) 2000-2006 Netfilter Core Team
[ 25.352542] nf_ct_ftp: Maximum expected value 1
[ 25.404467] NF_TPROXY: Transparent proxy support initialized, version 4.1.0
[ 25.411469] NF_TPROXY: Copyright (c) 2006-2007 BalaBit IT Ltd.
[ 25.432024] ctnetlink v0.93: registering with nfnetlink.
[ 25.547995] arp_tables: (C) 2002 David S. Miller
[ 25.640165] u32 classifier
[ 25.642929] Performance counters on
[ 25.646786] input device check on
[ 25.650447] Actions configured
Done.
[ 25.667755] Running /etc/runlevel/2/S31xtables6...Done.
[ 25.696369] Running /etc/runlevel/2/S32auth...Done.
[ 25.703742] Running /etc/runlevel/2/S32clst...Done.
[ 25.797569] Running /etc/runlevel/2/S32modemdrivers...[ 25.830945] USB Serial support registered for GSM modem (1-port)
[ 25.837328] usbcore: registered new interface driver option
[ 25.842932] option: v0.7.2:USB Driver for GSM modems
[ 25.855957] USB Serial support registered for Sierra USB modem
[ 25.862101] usbcore: registered new interface driver sierra
[ 25.867685] wg_sierra: v.1.7.40:USB Driver for Sierra Wireless USB modems
[ 25.885313] usbcore: registered new interface driver cdc_acm
[ 25.890978] cdc_acm: USB Abstract Control Model driver for USB modems and ISDN adapters
[ 25.915679] usbcore: registered new interface driver cdc_ether
[ 25.928550] usbcore: registered new interface driver rndis_host
[ 25.942465] usbcore: registered new interface driver sierra_net
Done.
[ 25.935217] Running /etc/runlevel/2/S32wgxt...[ 25.966716] ipt_addrpairs_6 v0.1.0: Loading
[ 25.991509] xt_session6 : Loading
[ 25.994854] xt_session6 : Loaded limit 1000 hash 1024 WG IPC ID 184549376 (0x0B000000)
[ 26.046210] ipt_addrpairs: ADDRPAIRS SCALE Set MAX 16384 Entry Max 16384
[ 26.052945] ipt_addrpairs: v1.0.0 Loaded
[ 26.099673] xt_ifset: Loaded with set limit 5000 and entry limit 5000
[ 26.107486] xt_classify : Loaded
[ 26.113212] xt_master: Loaded
[ 26.119129] xt_MASTER: Loaded
[ 26.125964] xt_WGTEE: Loaded
[ 26.133049] Schedule: Loaded
[ 26.137345] xt_POLICY: Loaded
[ 26.143345] xt_policy : Loaded
[ 26.147855] xt_EXPIRES: Loaded
[ 26.153894] xt_IPPRECEDENCE: Loaded
[ 26.164862] xt_PKTCACHE: Loaded
[ 26.193761] xt_session : Loaded limit 1000 hash 1024 WG IPC ID 92274688 (0x05800000)
[ 26.225609] xt_CONNCLASSIFY: Loaded
[ 26.230396] xt_connclassify : Loaded
[ 26.238197] xt_ipspoof : Loaded
[ 26.315054] xt_LBDNAT: Loaded
[ 26.336697] xt_MWAN: Loaded
[ 26.350322] xt_psd: Loaded
[ 26.357565] xt_ipsd: Loaded
[ 26.364472] xt_ddos: Loaded
[ 26.372814] xt_dos: Loaded
[ 26.385307] xt_wgaccount: Loaded
[ 26.437699] xt_block : Loaded limit 1000 hash 1024 WG IPC ID 155189248
[ 26.450045] xt_localroute: Loaded
[ 26.459131] xt_duplicate: Loaded
Done.
[ 26.462427] Running /etc/runlevel/2/S33appID...[ 26.662873] WG workqueue: Loaded
[ 26.701042] bw driver: Loaded
Done.
[ 26.690851] Running /etc/runlevel/2/S35proxy...[ 26.715015] Proxy glue: Loaded 10:59:59 (196)
Setting the proxy tmpfs size to size=248m.
[ 26.734767] Done.
[ 26.734889] Running /etc/runlevel/2/S35scand...Done.
[ 30.206074] Running /etc/runlevel/2/S36dynroute...Done.
[ 30.206885] Running /etc/runlevel/2/S42ssh...Done.
[ 30.211099] Running /etc/runlevel/2/S44sysb...Done.
[ 30.479721] Running /etc/runlevel/2/S50nettune...Setting IPv4 route garbage collection timeout to 2 minutes
[ 30.482259] Setting promote_secondaries to 1
[ 30.482432] Done.
[ 30.482491] Running /etc/runlevel/2/S53configdhash...Done.
[ 30.482891] Running /etc/runlevel/2/S80seed-random...Saved random seed
[ 31.560675] Done.
[ 31.560863] Running /etc/runlevel/2/S90kcrashrep...Done.
[ 31.562197] Running /etc/runlevel/2/S99igmp...Done.
[ 31.563147] Running /etc/runlevel/2/S99rootro...Done.
[ 31.567853] Running /etc/runlevel/2/S99setmacs...setting device eth0 to 00:90:7f:a4:e0:f9
[ 31.581433] setting device eth1 to 00:90:7f:a4:e0:fa
[ 31.581633] setting device eth2 to 00:90:7f:a4:e0:fb
[ 31.581813] setting device eth3 to 00:90:7f:a4:e0:fc
[ 31.581993] setting device eth4 to 00:90:7f:a4:e0:fd
[ 31.582171] setting device eth5 to 00:90:7f:a4:e0:fe
[ 31.582351] setting device eth6 to 00:90:7f:a4:e0:ff
[ 31.583266] Done.
[ 38.517373] device sw10 entered promiscuous mode
[ 38.522707] ADDRCONF(NETDEV_UP): eth0: link is not ready
[ 38.951394] xt_connbytes: Forcing CT accounting to be enabled
[ 38.989451] ADDRCONF(NETDEV_UP): eth1: link is not ready
[ 39.006800] ADDRCONF(NETDEV_UP): eth2: link is not ready
[ 39.149289] ADDRCONF(NETDEV_UP): eth3: link is not ready
[ 39.189878] ADDRCONF(NETDEV_UP): wgdeth3: link is not ready
[ 39.308506] device sw11 entered promiscuous mode
[ 39.313945] ADDRCONF(NETDEV_UP): eth4: link is not ready
[ 39.319532] device sw11 left promiscuous mode
[ 39.357295] device sw11 entered promiscuous mode
[ 39.362745] ADDRCONF(NETDEV_UP): wgdeth4: link is not ready
[ 39.479727] ADDRCONF(NETDEV_UP): eth5: link is not ready
[ 39.493796] ADDRCONF(NETDEV_UP): eth6: link is not ready
[ 39.730418] Running /etc/runlevel/4/S51armled...Done.
XTM330 login:
|
