ZyXEL/Keenetic series

Keenetic series

Keenetic products • Roadmap • Product Brief

Wireless Routers

ac

Device	Type	PHY modes	Manuf.	CPU1	FLA1	RAM1	WI1	WI2	Switch	Ether.	Expan.	Ports	FCC date
Keenetic Air (KN-1610) has internal images	wireless router	abgn+ac	TP-LINK CoO:	MediaTek MT7628AN 580 MHz	16 MiB16,777,216 B <br />131,072 Kib <br />16,384 KiB <br />128 Mib <br />0.0156 GiB <br />	64 MiB67,108,864 B <br />524,288 Kib <br />65,536 KiB <br />512 Mib <br />0.0625 GiB <br />	MediaTek MT7628AN 2x2:2, bgn	MediaTek MT7612EN 2x2:2, an+ac	MediaTek MT7628AN	100M 3x LAN 1x WAN			2018-01-01 (no FCC)
Keenetic City (KN-1510) has internal images	wireless router	abgn+ac	TP-LINK CoO:	MediaTek MT7628AN 580 MHz	16 MiB16,777,216 B <br />131,072 Kib <br />16,384 KiB <br />128 Mib <br />0.0156 GiB <br />	64 MiB67,108,864 B <br />524,288 Kib <br />65,536 KiB <br />512 Mib <br />0.0625 GiB <br />	MediaTek MT7628AN 2x2:2, bgn	MediaTek MT7610E 1x1:1, an+ac	MediaTek MT7628AN	100M 3x LAN 1x WAN
ZyXEL Keenetic Extra II	wireless router	abgn+ac	CoO:	MediaTek MT7628AN 580 MHz	32 MiB33,554,432 B <br />262,144 Kib <br />32,768 KiB <br />256 Mib <br />0.0313 GiB <br />	128 MiB134,217,728 B <br />1,048,576 Kib <br />131,072 KiB <br />1,024 Mib <br />0.125 GiB <br />	MediaTek MT7628AN 2x2:2, bgn	MediaTek MT7612EN 2x2:2, an+ac	MediaTek MT7628AN	100M 4x LAN 1x WAN	USB 2.0	1x USB
ZyXEL Keenetic Giga III	wireless router	abgn+ac	MitraStar CoO:	MediaTek MT7621ST 880 MHz 1 cores	128 MiB134,217,728 B <br />1,048,576 Kib <br />131,072 KiB <br />1,024 Mib <br />0.125 GiB <br />	256 MiB268,435,456 B <br />2,097,152 Kib <br />262,144 KiB <br />2,048 Mib <br />0.25 GiB <br />	MediaTek MT7602EN 2x2:2, bgn Ant. conn: U.FL	MediaTek MT7612EN 2x2:2, an+ac Ant. conn: U.FL	MediaTek MT7621ST	1GbE 4x LAN 1x WAN	USB 2.0 USB 3.0	2x USB	2015-09-23 (no FCC)
ZyXEL Keenetic Ultra II	wireless router	abgn+ac	MitraStar CoO:	MediaTek MT7621AT 880 MHz 2 cores	128 MiB134,217,728 B <br />1,048,576 Kib <br />131,072 KiB <br />1,024 Mib <br />0.125 GiB <br />	256 MiB268,435,456 B <br />2,097,152 Kib <br />262,144 KiB <br />2,048 Mib <br />0.25 GiB <br />	MediaTek MT7602EN 2x2:2, bgn Ant. conn: U.FL	MediaTek MT7612EN 2x2:2, an+ac Ant. conn: U.FL	Realtek RTL8370M	1GbE 7x LAN 1x WAN	USB 2.0 USB 3.0	2x USB	2015-09-23 (no FCC)

abgn

Device	Type	PHY modes	Manuf.	CPU1	FLA1	RAM1	WI1	WI2	Switch	Ether.	Expan.	Ports	FCC date
ZyXEL Keenetic Ultra	wireless router	abgn	CoO:	Ralink RT6856 700 MHz 1 cores	16 MiB16,777,216 B <br />131,072 Kib <br />16,384 KiB <br />128 Mib <br />0.0156 GiB <br />	256 MiB268,435,456 B <br />2,097,152 Kib <br />262,144 KiB <br />2,048 Mib <br />0.25 GiB <br />	Ralink RT5392L 2x2:2, bgn Ant. conn: RP-SMA	Ralink RT3593L 3x3:3, an Ant. conn: RP-SMA	Realtek RTL8367RB	1G 4x LAN 1x WAN	USB 2.0	2x USB

bgn

Device	Type	PHY modes	Manuf.	CPU1	FLA1	RAM1	WI1	Switch	Ether.	Expan.	Ports	FCC date
Keenetic 4G (KN-1210) has internal images	wireless router	bgn	TP-LINK CoO:	MediaTek MT7628NN 575 MHz	16 MiB16,777,216 B <br />131,072 Kib <br />16,384 KiB <br />128 Mib <br />0.0156 GiB <br />	64 MiB67,108,864 B <br />524,288 Kib <br />65,536 KiB <br />512 Mib <br />0.0625 GiB <br />	MediaTek MT7628NN 2x2:2, bgn	MediaTek MT7628NN	100M 3x LAN 1x WAN	USB 2.0	1x USB	2017-09-01 (no FCC)
Keenetic Lite (KN-1310) has internal images	wireless router	bgn	TP-LINK CoO:	MediaTek MT7628NN 575 MHz	16 MiB16,777,216 B <br />131,072 Kib <br />16,384 KiB <br />128 Mib <br />0.0156 GiB <br />	64 MiB67,108,864 B <br />524,288 Kib <br />65,536 KiB <br />512 Mib <br />0.0625 GiB <br />	MediaTek MT7628NN 2x2:2, bgn	MediaTek MT7628NN	100M 4x LAN 1x WAN
Keenetic Start (KN-1110)	wireless router	bgn	TP-LINK CoO:	MediaTek MT7628NN 575/580 MHz	16 MiB16,777,216 B <br />131,072 Kib <br />16,384 KiB <br />128 Mib <br />0.0156 GiB <br />	64 MiB67,108,864 B <br />524,288 Kib <br />65,536 KiB <br />512 Mib <br />0.0625 GiB <br />	MediaTek MT7628NN 2x2:2, bgn	MediaTek MT7628NN	100M 3x LAN 1x WAN			2017-09-01 (no FCC)
Keenetic Starter (KN-1111)	wireless router	bgn	TP-LINK CoO:	MediaTek MT7628NN 575/580 MHz	32 MiB33,554,432 B <br />262,144 Kib <br />32,768 KiB <br />256 Mib <br />0.0313 GiB <br />	64 MiB67,108,864 B <br />524,288 Kib <br />65,536 KiB <br />512 Mib <br />0.0625 GiB <br />	MediaTek MT7628NN 2x2:2, bgn	MediaTek MT7628NN	100M 3x LAN 1x WAN			2017-09-01 (no FCC)
ZyXEL Keenetic has internal images	wireless router	bgn	AboCom CoO:	Ralink RT3052F 384 MHz	8 MiB8,388,608 B <br />65,536 Kib <br />8,192 KiB <br />64 Mib <br />0.00781 GiB <br />	32 MiB33,554,432 B <br />262,144 Kib <br />32,768 KiB <br />256 Mib <br />0.0313 GiB <br />	Ralink RT3052F 2x2:2, bgn Ant. conn: RP-SMA	Ralink RT3052F	100M 4x LAN 1x WAN	USB 2.0	1x USB	2010-01-01 (no FCC)
ZyXEL Keenetic 4G II has internal images	wireless router	bgn	TP-LINK CoO:	Ralink RT5350 360 MHz	4 MiB4,194,304 B <br />32,768 Kib <br />4,096 KiB <br />32 Mib <br />0.00391 GiB <br />	32 MiB33,554,432 B <br />262,144 Kib <br />32,768 KiB <br />256 Mib <br />0.0313 GiB <br />	Ralink RT5350 1x1:1, bgn	Ralink RT5350	100M 4x LAN 1x WAN	USB 2.0	1x USB	2013-05-01 (no FCC)
ZyXEL Keenetic 4G III rev B	wireless router	bgn	TP-LINK CoO:	MediaTek MT7628NN 575 MHz	16 MiB16,777,216 B <br />131,072 Kib <br />16,384 KiB <br />128 Mib <br />0.0156 GiB <br />	64 MiB67,108,864 B <br />524,288 Kib <br />65,536 KiB <br />512 Mib <br />0.0625 GiB <br />	MediaTek MT7628NN 2x2:2, bgn Ant. conn: soldered	MediaTek MT7628NN	100M 1x LAN 1x WAN	USB 2.0	1x USB	2016-03-01 (no FCC)
ZyXEL Keenetic 4G rev B has internal images	wireless router	bgn	MitraStar CoO:	Ralink RT5350 360 MHz	8 MiB8,388,608 B <br />65,536 Kib <br />8,192 KiB <br />64 Mib <br />0.00781 GiB <br />	32 MiB33,554,432 B <br />262,144 Kib <br />32,768 KiB <br />256 Mib <br />0.0313 GiB <br />	Ralink RT5350 1x1:1, bgn	Ralink RT5350	100M 2x LAN 1x WAN	USB 2.0	1x USB
ZyXEL Keenetic Giga	wireless router	bgn	AboCom CoO:	Ralink RT3052F 384 MHz	8 MiB8,388,608 B <br />65,536 Kib <br />8,192 KiB <br />64 Mib <br />0.00781 GiB <br />	64 MiB67,108,864 B <br />524,288 Kib <br />65,536 KiB <br />512 Mib <br />0.0625 GiB <br />	Ralink RT3052F 2x2:2, bgn Ant. conn: RP-SMA	Atheros AR8316	1GbE 4x LAN 1x WAN	USB 2.0	2x USB	2011-11-01 (no FCC)
ZyXEL Keenetic Giga II	wireless router	bgn	CoO:	Ralink RT6856 700 MHz	16 MiB16,777,216 B <br />131,072 Kib <br />16,384 KiB <br />128 Mib <br />0.0156 GiB <br />	256 MiB268,435,456 B <br />2,097,152 Kib <br />262,144 KiB <br />2,048 Mib <br />0.25 GiB <br />	Ralink RT5392L 2x2:2, bgn Ant. conn: RP-SMA	Realtek RTL8367RB	1GbE 4x LAN 1x WAN	USB 2.0	2x USB
ZyXEL Keenetic III has internal images	wireless router	bgn	TP-LINK CoO:	MediaTek MT7620A 580 MHz	16 MiB16,777,216 B <br />131,072 Kib <br />16,384 KiB <br />128 Mib <br />0.0156 GiB <br />	128 MiB134,217,728 B <br />1,048,576 Kib <br />131,072 KiB <br />1,024 Mib <br />0.125 GiB <br />	MediaTek MT7620A 2x2:2, bgn	MediaTek MT7620A	100M 4x LAN 1x WAN	USB 2.0	1x USB	2015-09-01 (no FCC)
ZyXEL Keenetic Lite II	wireless router access point	bgn	TP-LINK CoO:	MediaTek MT7620N 580 MHz	8 MiB8,388,608 B <br />65,536 Kib <br />8,192 KiB <br />64 Mib <br />0.00781 GiB <br />	64 MiB67,108,864 B <br />524,288 Kib <br />65,536 KiB <br />512 Mib <br />0.0625 GiB <br />	MediaTek MT7620N 2x2:2, bgn	MediaTek MT7620N	100M 4x LAN 1x WAN			2013-08-01 (no FCC)
ZyXEL Keenetic Start II has internal images	wireless router	bgn	TP-LINK CoO:	MediaTek MT7628NN 575 MHz	16 MiB16,777,216 B <br />131,072 Kib <br />16,384 KiB <br />128 Mib <br />0.0156 GiB <br />	64 MiB67,108,864 B <br />524,288 Kib <br />65,536 KiB <br />512 Mib <br />0.0625 GiB <br />	MediaTek MT7628NN 2x2:2, bgn Ant. conn: soldered	MediaTek MT7628NN	100M 1x LAN 1x WAN			2016-02-01 (no FCC)

Models

Keenetic 2019 • EN • RU • UA • TR: Catalogue • Gallery • Tables

Giga (KN-1010) (Hero 5) • Review • Keenetic Giga (KN-1010)

AC1300 Dual Band Whole Home Wi-Fi 5 Combo Gigabit Router

• Keenetic Giga (KN-1010) • >>
AC1300 Dual Band WiFi 5 Combo Gigabit Router • Review CPU: MediaTek MT7621AT (MIPS 1004Kc) @880MHz (2C4T) Flash: Spansion S34ML01G200TFI00 128MB (NAND, DB) RAM: Nanya NT5CC128M16IP-DI 256MB (DDR3-1600) WLAN: 1x MediaTek MT7615DN - 2x 2T2R (2.4/5GHz) FEM: 2.4GHz 2x Skyworks SKY85303-11 (ePA/eLNA) FEM: 5GHz 2x Skyworks SKY85717-21 (ePA/eLNA) ANT: 4x 5dBi (fixed PIFA ext.), AC1200 (ARM+Andes) WAN: 1x GbE (RJ45/SFP Combo), LAN: 4x GbE (RJ45) Switch: int. 5x GbE + Realtek RTL8211FS (PHY) USB: 1x USB 2.0, 1x USB 3.0 • Review

Giga AX (KN-1011) (Giga 6/Hero 6) • Review • PCB • Keenetic Giga AX (KN-1011)

AX1800 Dual Band Whole Home Wi-Fi 6 Combo Gigabit Router

• Keenetic Giga AX (KN-1011) • >>
AX1800 Dual Band WiFi 6 Combo Gigabit Router • Spec. CPU: MediaTek MT7621AT (MIPS 1004Kc) @880MHz (2C4T) Flash: Winbond W29N01HVSINF 128MB (NAND, DB) RAM: Nanya NT5CC256M16IP-DI 512MB (DDR3-1600) WLAN: MediaTek MT7915DAN/MT7975DN - 2x 2T2R (2.4/5GHz) ANT: 4x 5dBi (fixed PIFA ext.), AX1800 (ARM+Andes) WAN: 1x GbE (RJ45/SFP Combo), LAN: 4x GbE (RJ45) Switch: int. 5x GbE + Realtek RTL8211FS (PHY) USB: 1x USB 2.0, 1x USB 3.0; Bluetooth: BT 5.1

Start (KN-1110)/(KN-1112) • N300 Whole Home Wi-Fi Router • Keenetic Start (KN-1110)

Starter (KN-1111) • N300 Whole Home Wi-Fi Router • Keenetic Starter (KN-1111)

4G (KN-1210)/(KN-1212) • N300 Whole Home Wi-Fi 3G/4G Router • Keenetic 4G (KN-1210)

Launcher (KN-1211) • N300 Whole Home Wi-Fi 3G/4G Router • Keenetic Launcher (KN-1211)

Lite (KN-1310) • N300 Whole Home Wi-Fi Router/Extender • Keenetic Lite (KN-1310)

Sprinter (KN-1311) • N300 Whole Home Wi-Fi Router/Extender • Keenetic Sprinter (KN-1311)

Omni (KN-1410) • N300 Whole Home Wi-Fi USB Router • Keenetic Omni (KN-1410)

Hopper (KN-1411) • N300 Whole Home Wi-Fi USB Router • Keenetic Hopper (KN-1411)

City (KN-1510) • AC750 Dual Band Whole Home Wi-Fi Router • Keenetic City (KN-1510)

Glider (KN-1511) • AC750 Dual Band Whole Home Wi-Fi Router • Keenetic Glider (KN-1511)

Air (KN-1610)/(KN-1613) • AC1200 Dual Band Whole Home Wi-Fi Router/Extender • Keenetic Air (KN-1610)

Explorer (KN-1611) • AC1200 Dual Band Whole Home Wi-Fi Router/Extender • Keenetic Explorer (KN-1611)

• Keenetic Air (KN-1611) • >>
AC1200 Dual Band Whole Home Wi-Fi Router/Extender • CPU: MediaTek MT7628AN (MIPS 24Kc) @580MHz (WiSoC) • Flash: 32/32MB, SPI (Dual Boot), RAM: 128MB (DDR2) • WLAN 2.4GHz: MediaTek MT7628AN (WiSoC) 2T2R/300Mbps, 2x 5dBi ant. (fixed ext.) • WLAN 5GHz: MediaTek MT7613EN (PCIe) 2T2R/867Mbps, 2x ant. (fixed ext.) • Ethernet ports: 1x WAN (FE), 4x LAN (FE), HW Mode Selector

Extra (KN-1710)/(KN-1713) • AC1200 Dual Band Whole Home Wi-Fi USB Router • Keenetic Extra (KN-1710)

Carrier (KN-1711) • AC1200 Dual Band Whole Home Wi-Fi USB Router • Keenetic Carrier (KN-1711)

• Keenetic Extra (KN-1711) • >>
AC1200 Dual Band Whole Home Wi-Fi USB Router • CPU: MediaTek MT7628AN @580MHz (WiSoC) • Flash: Winbond W25Q256JVFQ 32MB (SPI) • RAM: ESMT M14D1G1664A 128MB (DDR2) • WLAN 2.4GHz: MediaTek MT7628AN (WiSoC) • WLAN 5GHz: MediaTek MT7613AEN (PCIe) • Ethernet ports: 1x WAN (FE), 4x LAN (FE) • USB: 1x USB 2.0 ports

Ultra (KN-1810) • AC2600 Dual Band Whole Home Wi-Fi SFP/RJ-45 Combo Gigabit Router • Keenetic Ultra (KN-1810)

Titan (KN-1810) • AC2600 Dual Band Whole Home Wi-Fi SFP/RJ-45 Combo Gigabit Router

Ultra AX (KN-1811) • AX3200 Dual Band Whole Home Wi-Fi SFP/RJ-45 Combo Gigabit Router • Keenetic Ultra AX (KN-1811)

• CPU: MediaTek MT7622BV (ARM @1.35GHz) - 4T4R (2.4GHz)

• Flash: Winbond 128MB (NAND, DB); RAM: 512MB (DDR3)

• WLAN: MediaTek MT7915AN/MT7975AN - 4T4R (5GHz)

Viva (KN-1910)/(KN-1912) • AC1300 Dual Band Whole Home Wi-Fi Gigabit Router • Keenetic Viva (KN-1910)

Skipper (KN-1910) • AC1300 Dual Band Whole Home Wi-Fi Gigabit Router

DSL (KN-2010) • N300 Whole Home Wi-Fi VDSL2/ADSL2+ Modem Router • Keenetic DSL (KN-2010)

Hopper DSL (KN-2011) • N300 Whole Home Wi-Fi VDSL2/ADSL2+ Modem Router

Duo (KN-2110) • AC1200 Dual Band Whole Home Wi-Fi VDSL2/ADSL2+ Modem Router • Keenetic Duo (KN-2110)

Carrier DSL (KN-2111) • AC1200 Dual Band Whole Home Wi-Fi VDSL2/ADSL2+ Modem Router

Runner 4G (KN-2210) • CPU: MediaTek MT7628NN @575MHz (WiSoC) • Keenetic Runner 4G (KN-2210)

N300, 4x FE ports, LTE, AES • PCB: 2056500023/2056500008 (OEM: TP-LINK)

• Keenetic Runner 4G (KN-2210) • >>
N300 Whole Home Mesh Wi-Fi Router/Extender • CPU: MediaTek MT7628NN @575MHz (MIPS 24KEc) WiSoC • Flash: Winbond W25Q256JVFQ 32MB (SPI, DB) • RAM: ESMT M14D1G1664A-2.5B 128MB (DDR2-800) • WLAN 2.4GHz: MediaTek MT7628NN 802.11bgn (2T2R) • LTE Modem: Qualcomm MDM9207 (Cat.4 3G/4G) • Ethernet ports: 4x FE LAN; no USB • Antennas: 2x 4dBi WiFi + 2x ant. LTE

Hero 4G (KN-2310) • CPU: MediaTek MT7621AT @880MHz (2C/4T) • Keenetic Hero 4G (KN-2310)

AC1300 (Wave2), 4x GbE ports, LTE, EIP93 • PCB: 2056500037 (OEM: TP-LINK)

• Keenetic Hero 4G (KN-2310) • >>
AC1300 Dual Band Wi-Fi Gigabit Router/LTE Modem • CPU: MediaTek MT7621DAT @880MHz (2C4T, MIPS 1004Kc) • Flash: ESMT F59L1G81MB 128MB (NAND, DB), emb. 128MB RAM • RAM: ESMT M15T1G1664A 128MB (DDR3-1600) - LTE Modem • WLAN 2.4GHz: MediaTek MT7615DN, 802.11bgn 2T2R • WLAN 5GHz: MediaTek MT7615DN, 802.11an+ac 2T2R (AC1300) • LTE Modem: Qualcomm MDM9207 (Cat.4 3G/4G) + 2x ant. LTE • Ethernet ports: 1x GbE WAN, 4x GbE LAN; 1x USB 2.0; 12V/2A • Antennas: 2x 5dBi, FEM (ePA/eLNA) 5GHz, fixed DB ext

Giga SE (KN-2410) / Hero DSL (KN-2410) • Keenetic Giga SE (KN-2410)

CPU: EcoNet EN7516GT (MIPS 1004Kc) @900MHz (2C4T) • Spec.

AC1300 (Wave2), 5x 1GbE ports, ADSL2+, VDSL2 • PCB: 45-403-000886 (OEM: MitraStar)

• Giga SE (KN-2410) / Hero DSL (KN-2410) • >>
ADSL2+/VDSL2 Modem / AC1300 Mesh Wi-Fi System CPU: EcoNet EN7516GT (MIPS 1004Kc) @900MHz (2C4T) Flash: 128MB Winbond W25N01GVZEIG (NAND, DB) RAM: 256MB Winbond W632GU6NB-11 (DDR3) WiFi: MediaTek MT7615DN - 2x 2T2R (2.4/5GHz) FEM: Richwave RTC5638H (ePA/eLNA) 5GHz DSL: EcoNet EN7556N (ADSL2+/VDSL2 AFE) ADSL2+/VDSL2, 30a/35b, 5x 1GbE ports, 12V/2A 1x USB 2.0, 1x USB 3.0, 4x 5dBi ant, 802.11k/r/v

Ultra SE (KN-2510) / Peak DSL (KN-2510) • Keenetic Ultra SE (KN-2510)

CPU: EcoNet EN7516GT (MIPS 1004Kc) @900MHz (2C4T) • Roadmap • Tables

AC2600 (Wave2), 9x GbE ports, ADSL, VDSL, RAM: 256MB, 1x USB 2.0, 1x USB 3.0

• Ultra SE (KN-2510) / Peak DSL (KN-2510) • >>
ADSL2+/VDSL2 Modem / AC2600 Mesh Wi-Fi System CPU: EcoNet EN7516GT (MIPS 1004Kc) @900MHz (2C4T) Flash: 128MB Winbond W25N01GVZEIG (NAND, DB) RAM: 256MB Winbond W632GU6NB-11 (DDR3) WiFi: 2x MediaTek MT7615N - 4T4R (2.4/5GHz) FEM: Richwave RTC5638H (ePA/eLNA) 5GHz DSL: EcoNet EN7556N (ADSL2+/VDSL2 AFE) ADSL2+/VDSL2, 30a/35b, 9x 1GbE ports, 12V/3A 1x USB 2.0, 1x USB 3.0, 4x 5dBi ant, 802.11k/r/v

Giant (KN-2610) • CPU: MediaTek MT7621AT @880MHz (2C/4T) • Keenetic Giant (KN-2610)

AC1300, 8x GbE, 1x GbE/SFP combo ports, USB 2.0/3.0 • PCB: 45-403-000885 (OEM: MitraStar)

• Keenetic Giant (KN-2610) • >>
AC1300 Dual Band Mesh Wi-Fi Gigabit Router • CPU: MediaTek MT7621AT @880MHz (2C4T, MIPS 1004Kc) • Flash: 128MB Winbond (NAND, DB) • RAM: 256MB Nanya (DDR3-1600) • WLAN 2.4GHz: MediaTek MT7615DN, 802.11bgn 2T2R • WLAN 5GHz: MediaTek MT7615DN, 802.11an+ac 2T2R (AC1300) • Ports: 1x GbE/SFP WAN, 8x GbE LAN; 1x USB 2.0, 1x USB 3.0; • Antennas: 4x 5dBi, FEM (ePA/eLNA) 2.4/5GHz, RP-SMA DB ext

Peak (KN-2710) • CPU: MediaTek MT7622BV (ARM @1.35GHz), RAM: 512MB • Keenetic Peak (KN-2710)

AC2600 (Wave2) 4T4R, 9x GbE ports, SFP, 1x USB 2.0, 1x USB 3.0, 12V/4A • Roadmap • Spec. • Label

Orbiter (KN-2800) • Mesh EXT • AC1300 Dual Band Mesh Wi-Fi Extender

AC1300, Dual Band, Mesh, MU-MIMO

Orbiter Pro (KN-2810) • AC1300 Mesh Wi-Fi 5 Gigabit Router/Extender/Access Point with PoE

• CPU: MediaTek MT7621A T@880MHz (2C4T, MIPS 1004Kc), Flash: 128MB, RAM: 128MB • Keenetic Orbiter Pro (KN-2810)

Speedster (KN-3010)/(KN-3012) • AC1200 Dual Band Whole Home Mesh Wi-Fi Gigabit Router/Extender • Keenetic Speedster (KN-3010)

• Keenetic Speedster (KN-3010) • >>
AC1200 Dual Band Whole Home Mesh Wi-Fi Gigabit Router/Extender • CPU: MediaTek MT7621DAT @880MHz (2C4T, MIPS 1004Kc), emb. RAM • Flash: Winbond W25Q256JVFQ 32MB (SPI); RAM: 128MB (DDR3-1200) • WLAN 5GHz: MediaTek MT7613BEN, 802.11an+ac 2T2R (BF, MU-MIMO) • WLAN 2.4GHz: MediaTek MT7603EN, 802.11bgn 2T2R • Ethernet ports: 1x GbE WAN, 4x GbE LAN; no USB

Voyager (KN-3500) • AC2200 Tri Band Mesh Wi-Fi Gigabit Router/Extender • Roadmap

AC2200, Tri Band, Mesh, MU-MIMO

Voyager Pro (KN-3510) • AX1800 Mesh Wi-Fi 6 Gigabit Router/Extender/Access Point with PoE

• CPU: MediaTek MT7621A T@880MHz (2C4T, MIPS 1004Kc), Flash: 128MB, RAM: 256MB • Keenetic Voyager Pro (KN-3510)

Keenetic Buddy 4 (KN-3210) • N300 Solo Band Mesh Wi-Fi Extender

• CPU: MediaTek MT7628NN @575MHz (MIPS 24Kc)

• Flash: 32MB (SPI NOR, DB); RAM: 64MB (DDR2)

• WLAN 2.4GHz: MediaTek MT7628N (2T2R)

• Ports: 1x 100M LAN; Antennas: 2x 3dBi

Keenetic Buddy 5 (KN-3310) • AC1200 Dual Band Mesh Wi-Fi Extender

• CPU: MediaTek MT7628AN @580MHz (MIPS 24Kc)

• Flash: 32MB (SPI NOR, DB); RAM: 128MB (DDR2)

• WLAN 2.4GHz: MediaTek MT7628AN (2T2R)

• WLAN 5GHz: MediaTek MT7613BEN (2T2R)

• Ports: 1x 100M LAN; Antennas: 2x 3dBi

Keenetic Buddy 5S (KN-3410) • AC1300 Dual Band Mesh Wi-Fi Extender

• CPU: MediaTek MT7621DAT @880MHz (MIPS 1004Kc)

• Flash: 32MB (SPI NOR, DB); RAM: 128MB (DDR3)

• WLAN 2.4/5GHz: MediaTek MT7615DN (2x 2T2R)

• Ports: 1x 1GbE LAN; Antennas: 2x 3dBi

FCC ID

FCC ID - EEC/RU0000049661 (RU0000049660/RU0000044387)

Wireless data transmission equipment of the Keenetic trademark, model:

KN-1011, KN-1111, KN-1211, KN-1311, KN-1511, KN-1611, KN-1711

KN-2410, KN-2510, KN-2610, KN-2710, KN-2810, KN-3010

KN-3210, KN-3310, KN-3410 (KN-3510)

Giga AX (KN-1011) • AX1800
Start (KN-1112) • N300 - MediaTek MT7628NN
4G (KN-1212) • N300 - MediaTek MT7628NN
Air (KN-1613) • AC1200 - MediaTek MT7628AN
Extra (KN-1713) • AC1200 - MediaTek MT7628AN
Ultra AX (KN-1811) • AX3200 - MediaTek MT7622BV/MT7915AN/MT7975AN
Viva (KN-1912) • AC1200 - EcoNet EN7561DU/
Runner 4G (KN-2210) • LTE + N300
Hero 4G (KN-2310) • LTE + AC1300
Giga SE (KN-2410) / Hero DSL (KN-2410) • DSL + AC1300
Ultra SE (KN-2510) / Peak DSL (KN-2510) • DSL + AC2600
Giant (KN-2610) • SFP + AC1300 • PCB
Peak (KN-2710) • ARM, SFP + AC2600 • EEC • Label

Orbiter Pro (KN-2810) • AC1300 - MediaTek MT7621AT/MT7615DN, 128/128MB, 12V/1A • Review
Speedster (KN-3010) • + AC1200 • EEC
Speedster (KN-3012) • AC1200 - EcoNet EN7561DU/
Linear (KN-3110) - VoIP, USB 2.0
Buddy 4 (KN-3210) • N300
Buddy 5 (KN-3310) • AC1200
Buddy 5S (KN-3410) • AC1300
Voyager Pro (KN-3510) • AX1800 - MediaTek MT7621AT/MT7915DAN/MT7975DN, 128/256MB, 12V/1.5A • Review
KN-3610
Sprinter (KN-3710) • AX1800 - EcoNet EN7561DU/MT7905DAN/MT7975DN, 12V/1A
Hopper (KN-3810) • AX1800 - EcoNet EN7561DU/MT7905DAN/MT7975DN, 12V/1.5A

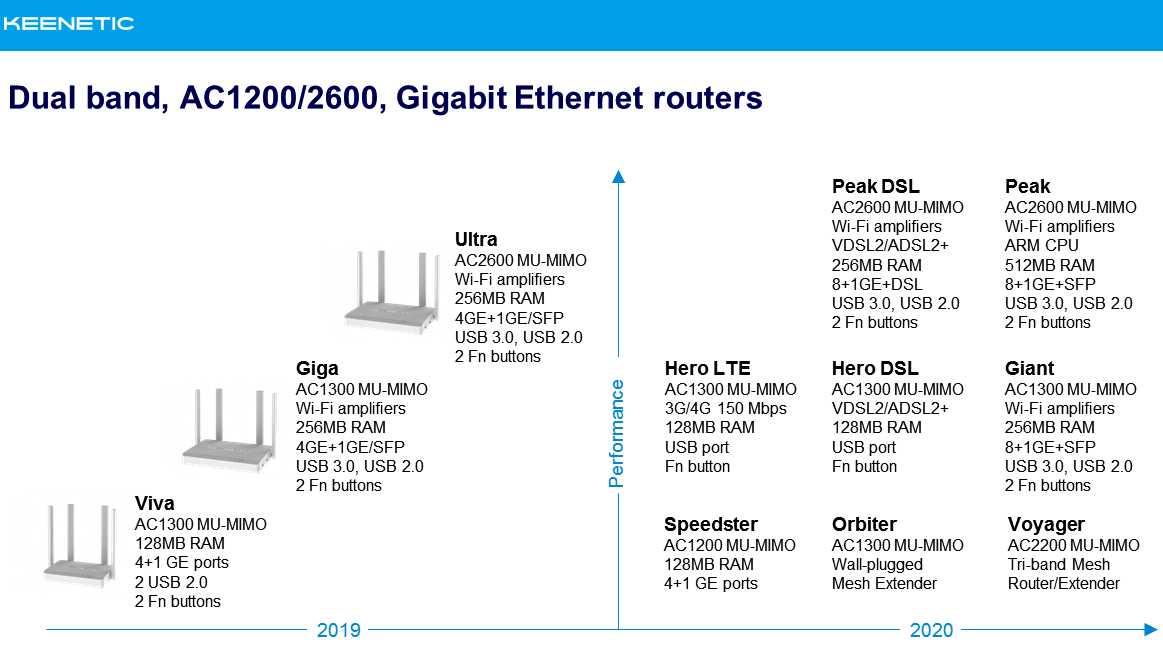

Roadmap

Models

Specifications

Spec. tables

• Keenetic spec. table

Keenetic Series

ZyXEL Keenetic • CPU: Ralink RT3052 (MIPS24Kc) @384MHz, Flash: 8MB, RAM: 32MB

WLAN: WiSoC 2T2R/300Mbps (2.4GHz), Switch: 5x FE (10/100), USB: 1x 2.0

ZyXEL Keenetic II • CPU: MediaTek RT6856 (MIPS34Kc) @700MHz, Flash: 16MB, RAM: 128MB (DDR2)

WLAN: Ralink RT5392 2T2R/300Mbps (2.4GHz), 2x 5dBi (ext), Switch: 5x FE (10/100), USB: 2x 2.0

ZyXEL Keenetic III • CPU: MediaTek MT7620A (MIPS24Kc) @580MHz, Flash: 16MB, RAM: 128MB (DDR2)

WLAN: WiSoC 2T2R/300Mbps (2.4GHz), 2x 5dBi (fixed DB ext), Switch: 5x FE (10/100), VoIP: 1x FXS, USB: 1x 2.0 - 2020500140

Keenetic 4G

ZyXEL Keenetic 4G rev A • CPU: Ralink RT3050 (MIPS24Kc) @320MHz Flash: 4MB, RAM: 32MB

WLAN: WiSoC 1T1R/150Mbps (2.4GHz), Switch: 3x FE (10/100), USB: 1x 2.0

ZyXEL Keenetic 4G rev B • CPU: Ralink RT5350 (MIPS24Kc) @360MHz Flash: 8MB, RAM: 32MB

WLAN: WiSoC 1T1R/150Mbps (2.4GHz), Switch: 3x FE (10/100), USB: 1x2.0

ZyXEL Keenetic 4G II • CPU: Ralink RT5350 (MIPS24Kc) @360MHz, Flash: 4MB, RAM: 32MB

WLAN: WiSoC 1T1R/150Mbps (2.4GHz), 1x 2dBi (fixed ext), Switch: 5x FE (10/100), USB: 1x 2.0 - 2050500383

ZyXEL Keenetic 4G III rev A • CPU: MediaTek MT7620N (MIPS24Kc) @580MHz, Flash: 8MB, RAM: 64MB (DDR1)

WLAN: WiSoC 2T2R/300Mbps (2.4GHz), 2x 3dBi (fixed ext), Switch: 5x FE (10/100), USB: 1x 2.0 - 2011500182

ZyXEL Keenetic 4G III rev B • CPU: MediaTek MT7628NN (MIPS24Kc) @575MHz, Flash: 16MB (SPI), RAM: 64MB (DDR2)

WLAN: WiSoC 2T2R/300Mbps (2.4GHz), 2x 5dBi (fixed ext), Switch: 2x FE (10/100), USB: 1x 2.0 - 2050500710

Keenetic 4G (KN-1210) • CPU: MediaTek MT7628NN (MIPS24Kc) @575MHz, Flash: 16MB (DB), RAM: 64MB (DDR2)

WLAN: WiSoC 2T2R/300Mbps (2.4GHz), 2x 5dBi, Switch: 4x FE (10/100), USB: 1x 2.0 (3G/4G) - 2050501028

Keenetic Launcher (KN-1211) • CPU: MediaTek MT7628NN (MIPS24Kc) @575MHz, Flash: 32MB (DB), RAM: 64MB (DDR2)

WLAN: WiSoC 2T2R/300Mbps (2.4GHz), 2x 5dBi, Switch: 4x FE (10/100), USB: 1x 2.0 (3G/4G) - 2050501028

Keenetic Lite

ZyXEL Keenetic Lite rev A • CPU: Ralink RT3050 (MIPS24Kc) @320MHz Flash: 4MB, RAM: 32MB

WLAN: WiSoC 1T1R/150Mbps (2.4GHz), Switch: 5x FE (10/100)

ZyXEL Keenetic Lite rev B • CPU: Ralink RT5350 (MIPS24Kc) @360MHz Flash: 8MB, RAM: 32MB

WLAN: WiSoC 1T1R/150Mbps (2.4GHz), Switch: 5x FE (10/100)

ZyXEL Keenetic Lite II rev A • CPU: MediaTek MT7620N (MIPS24Kc) @580MHz, Flash: 8MB, RAM: 64MB (DDR1)

WLAN: WiSoC 2T2R/300Mbps (2.4GHz), 2x 3dBi (fixed ext), Switch: 5x FE (10/100) - 2011500149

ZyXEL Keenetic Lite III rev A • CPU: MediaTek MT7620N (MIPS24Kc) @580MHz, Flash: 8MB, RAM: 64MB (DDR1)

WLAN: WiSoC 2T2R/300Mbps (2.4GHz), 2x 3dBi (fixed ext), Switch: 5x FE (10/100) - 2011500182

ZyXEL Keenetic Lite III rev B • CPU: MediaTek MT7628N (MIPS24Kc) @575MHz, Flash: 16MB (SPI), RAM: 64MB (DDR2)

WLAN: WiSoC 2T2R/300Mbps (2.4GHz), 2x 5dBi (fixed ext), Switch: 5x FE (10/100)

Keenetic Lite (KN-1310) • CPU: MediaTek MT7628N (MIPS24Kc) @575MHz, Flash: 16MB (DB), RAM: 64MB (DDR2)

WLAN: WiSoC 2T2R/300Mbps (2.4GHz), 2x 5dBi (eLNA), Switch: 5x FE (10/100) LED, Mode Selector - 2050501028 • Blog

Keenetic Omni

ZyXEL Keenetic Omni • CPU: MediaTek MT7620N (MIPS24Kc) @580MHz, Flash: 8MB, RAM: 64MB (DDR1)

WLAN: WiSoC 2T2R/300Mbps (2.4GHz), 2x 3dBi (fixed ext), Switch: 5x FE (10/100), USB: 1x 2.0

ZyXEL Keenetic Omni II • CPU: MediaTek MT7620N (MIPS24Kc) @580MHz, Flash: 8MB, RAM: 64MB (DDR1)

WLAN: WiSoC 2T2R/300Mbps (2.4GHz), 2x 3dBi (fixed ext), Switch: 5x FE (10/100), USB: 1x 2.0

Keenetic Omni (KN-1410) • CPU: MediaTek MT7628N (MIPS24Kc) @575MHz, Flash: 32MB (DB), RAM: 128MB (DDR2)

WLAN: WiSoC 2T2R/300Mbps (2.4GHz), 2x 5dBi (eLNA), Switch: 5x FE (10/100) LED, USB: 1x 2.0 (full) - 2050501028 • Blog

Keenetic Start

ZyXEL Keenetic Start • CPU: Ralink RT5350 (MIPS24Kc) @360MHz, Flash: 4MB, RAM: 32MB

WLAN: WiSoC 1T1R/150Mbps (2.4GHz), 1x 2dBi (fixed ext), Switch: 5x FE (10/100)

ZyXEL Keenetic Start II • CPU: MediaTek MT7628NN (MIPS24Kc) @575MHz, Flash: 16MB (SPI), RAM: 64MB (DDR2)

WLAN: WiSoC 2T2R 300Mbps (2.4GHz), 2x 5dBi (fixed ext), Switch: 2x FE (10/100) - 2050500710

Keenetic Start (KN-1110) • CPU: MediaTek MT7628NN (MIPS24Kc) @575MHz, Flash: 16MB, RAM: 64MB (DDR2)

WLAN: WiSoC 2T2R 300Mbps (2.4GHz), 2x 5dBi (fixed ext), Switch: 4x FE (10/100)

Keenetic Starter (KN-1111) • CPU: MediaTek MT7628NN (MIPS24Kc) @575MHz, Flash: 32MB, RAM: 64MB (DDR2)

WLAN: WiSoC 2T2R 300Mbps (2.4GHz), 2x 5dBi (fixed ext), Switch: 4x FE (10/100)

Keenetic Extra

ZyXEL Keenetic Extra • CPU: MediaTek MT7620A (MIPS24Kc) @580MHz, Flash: 16MB, RAM: 128MB (DDR2)

WLAN: WiSoC 2T2R/300Mbps (2.4GHz) + Ralink RT5592 2T2R/300Mbps (5GHz), 2x 4dBi (fixed DB ext),

Switch: Realtek RTL8367RB 5x GbE, USB: 1x 2.0

ZyXEL Keenetic Extra II • CPU: MediaTek MT7628AN (MIPS24Kc) @580MHz, Flash: 32MB (SPI), RAM: 128MB (DDR2)

WLAN: WiSoC 2T2R/300Mbps (2.4GHz) + MediaTek MT7612E 2T2R/867Mbps (5GHz), 4x 5dBi (fixed ext),

Switch: 5x FE (10/100), USB: 1x 2.0

Keenetic Extra (KN-1710) • CPU: MediaTek MT7628AN (MIPS24Kc) @580MHz, Flash: 32MB (DB), RAM: 128MB (DDR2)

WLAN: WiSoC 2T2R/300Mbps (2.4GHz) + MediaTek MT7612E 2T2R/867Mbps (5GHz), 4x 5dBi (eLNA, FEM),

Switch: 5x FE (10/100) LED, USB: 1x 2.0 • Blog

Keenetic Viva

ZyXEL Keenetic Viva • CPU: MediaTek MT7620N (MIPS24Kc) @600MHz, Flash: 16MB, RAM: 128MB (DDR2)

WLAN: WiSoC 2T2R/300Mbps (2.4GHz), 2x 3dBi (fixed ext), Switch: Realtek RTL8367RB 5x GbE, USB: 1x 2.0

Keenetic Viva (KN-1910) • CPU: MediaTek MT7621AT (MIPS1004Kc) @880MHz Dual Core, AC1300, Wave2 • Spec.

Flash: Macronix MX30LF1G18AC-TI (128MB (DB), NAND), RAM: Winbond W631GC6MB-12 (128MB, DDR3-1600)

WLAN: MediaTek 1x MT7615DN, 2x 2T2R (2.4/5GHz), QAM256, 2x 5dBi (fixed ext), Switch: 5x GbE, USB: 2x 2.0

Keenetic Air

ZyXEL Keenetic Air • CPU: MediaTek MT7628AN (MIPS24Kc) @580MHz, Flash: 16MB (SPI), RAM: 64MB (DDR2)

WLAN: WiSoC 2T2R/300Mbps (2.4GHz) + MediaTek MT7612E 2T2R/867Mbps (5GHz), 4x 5dBi (fixed ext), Switch: 2x FE

Keenetic Air (KN-1610) • CPU: MediaTek MT7628AN (MIPS24Kc) @580MHz, Flash: 16MB (DB), RAM: 64MB (DDR2)

WLAN: WiSoC 2T2R/300Mbps (2.4GHz) + MediaTek MT7612EN 2T2R/867Mbps (5GHz), 4x 5dBi (fixed ext), Switch: 4x FE • Blog

Keenetic City

Keenetic City (KN-1510) • CPU: MediaTek MT7628AN (MIPS24Kc) @580MHz, Flash: 16MB (DB), RAM: 64MB (DDR2)

WLAN: WiSoC 2T2R/300Mbps (2.4GHz) + MediaTek MT7610E 1T1R/433Mbps (5GHz), 3x 5dBi (fixed ext), Switch: 4x FE • Blog

(5GHz FEM Skyworks SKY85734)

Keenetic Giga

ZyXEL Keenetic Giga • CPU: Ralink RT3052 (MIPS24Kc) @384MHz Flash: 8MB, RAM: 64MB

WLAN: WiSoC 2T2R/300Mbps (2.4GHz), Switch: 5x GbE, USB: 2x 2.0

ZyXEL Keenetic Giga II • CPU: Ralink RT6856 (MIPS34Kc) @700MHz, Flash: 16MB (SPI), RAM: 256MB (DDR2)

WLAN: Ralink RT5392 2T2R/300Mbps (2.4GHz), 2x 5dBi (ext), Switch: Realtek RTL8367RB 5x GbE, USB: 2x 2.0

ZyXEL Keenetic Giga III • CPU: MediaTek MT7621ST (MIPS1004Kc) @880MHz, Flash: 128MB, RAM: 256MB (DDR3)

WLAN: MediaTek MT7602E (SKY85303) 2T2R/300Mbps (2.4GHz) + MediaTek MT7612E (SKY85712) 2T2R/867Mbps (5GHz)

4x 5dBi (fixed DB ext), Switch: (int. MediaTek MT7530) 5x GbE, USB: 1x 2.0, 1x 3.0

Keenetic Giga (KN-1010) • CPU: MediaTek MT7621AT 2x @880MHz, Flash: 128MB (DB NAND), RAM: 256MB (DDR3)

WLAN: 1x MediaTek MT7615DN - 2x 2T2R 2.4/5GHz (867+400Mbps), 4x 5dBi (FEM, fixed PIFA ext), AC1200 (ARM+Andes)

WAN: 1x GbE (RJ45/SFP Combo), LAN: 4x GbE (RJ45), Switch: int. 5x GbE + Realtek RTL8211FS, USB: 1x 2.0, 1x 3.0 • Review

Flash: Spansion S34ML01G200TFI00 (128MB NAND), RAM: Nanya NT5CC128M16IP-DI (256MB DDR3-1600) • Spec

Keenetic Ultra

ZyXEL Keenetic Ultra • CPU: Ralink RT6856 (MIPS34Kc) @700MHz, Flash: 16MB (SPI), RAM: 256MB (DDR2)

WLAN: Ralink RT3593 3T3R/450Mbps (5GHz) + Ralink RT5392 2T2R/300Mbps (2.4GHz) - N750

3x 3dBi (fixed DB ext), Switch: Realtek RTL8367RB 5x GbE, USB: 2x 2.0

ZyXEL Keenetic Ultra II • CPU: MediaTek MT7621AT (MIPS1004Kc) 2x @880MHz, Flash: 128MB (NAND), RAM: 256MB (DDR3)

WLAN: MediaTek MT7602E 2T2R/300Mbps (2.4GHz) + MediaTek MT7612E 2T2R/867Mbps (5GHz) - AC1200

4x 5dBi (fixed ext), Switch: Realtek RTL8370M 8x GbE, USB: 1x 2.0, 1x 3.0

Keenetic Ultra (KN-1810) • CPU: MediaTek MT7621AT 2x @880MHz, Flash: 128MB (DB NAND), RAM: 256MB (DDR3)

WLAN: 2x MediaTek MT7615N - 2x 4T4R 2.4/5GHz (1733+800Mbps), 4x 5dBi (FEM, fixed DB PIFA ext), AC2600 (ARM+Andes)

WAN: 1x GbE (RJ45/SFP Combo), LAN: 4x GbE (RJ45), Switch: int. 5x GbE + Realtek RTL8211FS, USB: 1x 2.0, 1x 3.0

Flash: Spansion S34ML01G200TFI00 (128MB NAND), RAM: Nanya NT5CC128M16IP-DI (256MB DDR3-1600) • Spec

Keenetic DSL/VOX/LTE

ZyXEL Keenetic DSL • CPU: Ralink RT63368 (MIPS 34Kc) @700MHz, Flash: 16MB, RAM: 128MB (DDR2)

WLAN: Ralink RT5392 2T2R/300Mbps (2.4GHz), 2x 5dBi (fixed ext), Switch: 4x FE, DSL: 1x ADSL, USB: 2x 2.0

ZyXEL Keenetic VOX • CPU: Ralink RT63368 (MIPS 34Kc) @700MHz, Flash: 16MB, RAM: 128MB (DDR2)

WLAN: Ralink RT5392 2T2R/300Mbps (2.4GHz), 2x 3dBi (int), Switch: 4x FE, DSL: 1x ADSL, VoIP: 2x FXS, USB: 2x 2.0

ZyXEL Keenetic LTE • CPU: Ralink RT63368F (MIPS 34Kc) @700MHz, Flash: 128MB, RAM: 128MB (DDR2) • iXBT

WLAN: Ralink RT5392 2T2R/300Mbps (2.4GHz), 2x 3dBi (int), Switch: MediaTek MT7530BU 5x GbE,

VoIP: 2x FXS (Si32260), LTE Modem: Altair ALT3100 (miniPCIe/USB), 2x 3dBi (int/ext), USB: 1x 2.0

Keenetic DSL (KN-2010) • CPU: EcoNet EN7512U (MIPS 34Kc) @700MHz • Sert. • Spec.

Flash: ESMT F50L1G41A 128MB (SPI/NAND (DB)), RAM: NT5CC64M16GP-DI 128MB (DDR3),

WLAN: Ralink RT5392N 2T2R/300Mbps (2.4GHz), 802.11bgn, 2x LNA - N300

xDSL: EcoNet EN7556N (ADSL2+/VDSL2), Switch: 4x FE, USB: 1x 2.0

Keenetic Duo (KN-2110) • CPU: EcoNet EN7513T (MIPS 34Kc) @900MHz • Sert. • Spec.
